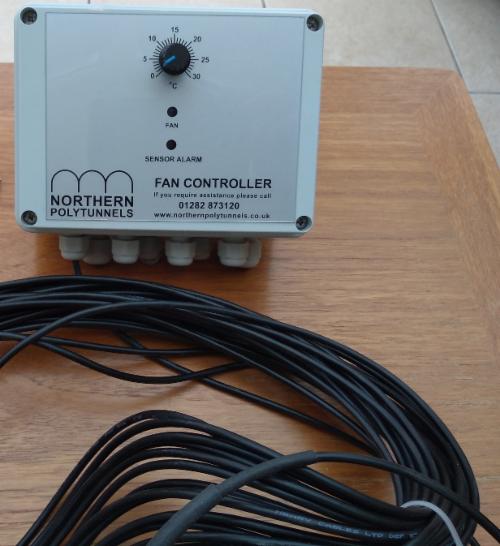

CONTROLLER FOR SPACE HEATING AND COOLING IN POLYTUNNELS AND GLASS HOUSES
S Temperature range from 0 deg
C to 30 deg C.
S Differential set to switch at 1deg C.
S Can be used for temperature and
ventilation/fan control.
S Ideal for controlling roof mounted
fans.
S Can be set for cooling in summer.
S Can be set for heating in winter.
S Red LED to indicate that heat is being
called for.
S Green LED to indicate that
ventilation/fan is being called for.
S Sensor integral or remote.
S Tight sensor interchangeability.
S Automatic audible and visual sensor alarm for
short and open circuit conditions
S Switched 240Vac live at 12 amps.
S Maximum load 2Kw resistive.
S Maximum load 1Kw inductive.
S Connections for up to 6 fans maximum
load 1Kw inductive.
S Connection for one 2Kw heater,
resistive.
S Splashproof PVC enclosure.
FOR THE LATEST INSTALLATION AND TECHNICAL INFORMATION CLICK HERE
