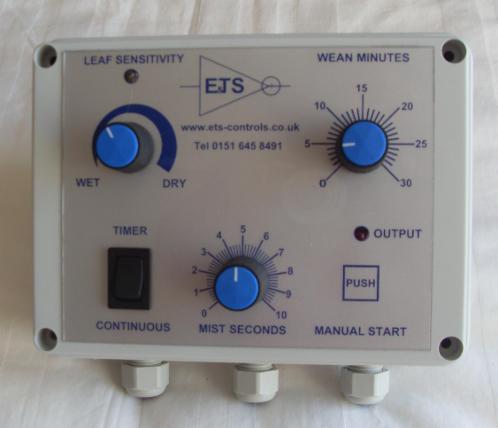

MIST AND WEAN UNIT


Design Concepts:
To produce a control to provide a cutting with the optimum conditions of growth. In the early stages of growth the control can be set to give predominantly mist conditions. As the cutting matures, the interval between misting can be increased thereby effectively weaning the plant.

S Integral 3-way fused terminal block connected to a 240Vac 50Hz supply
S Safe 24v AC 50Hz to irrigation valve. Output rated at 0.5 amp.
SInterval timing range from 30 seconds to 30 minutes.
S Burst length timer range from 0 to 10 seconds.
S The following control options are available:
(a) Mist when leaf wet (interval plus mist no leaf override.) No leaf connected).
(b) Mist until leaf wet (interval plus mist with leaf override). Leaf connected.
(c) Mist continuously until leaf wet (mist only). Interval set to a minimum
of 30seconds. Leaf connected.
S Can be used solely as a mist controller.
S Leaf or continuous control, switch selectable.
S Manual trigger for mist burst.
SAdjustable leaf sensitivity control with LED indications.
S Fused on primary and secondary outputs.

FOR THE LATEST INSTALLATION MANUAL CLICK HERE

ALL CONTROL UNITS ARE SUPPLIED WITH COMPLETE TECHNICAL AND INSTALLATION INSTRUCTIONS.
ALL CONTROL UNITS CARRY A 12 MONTH WARRANTY
