Temperature Controllers for the control of Heated benches and for enclosed structures.

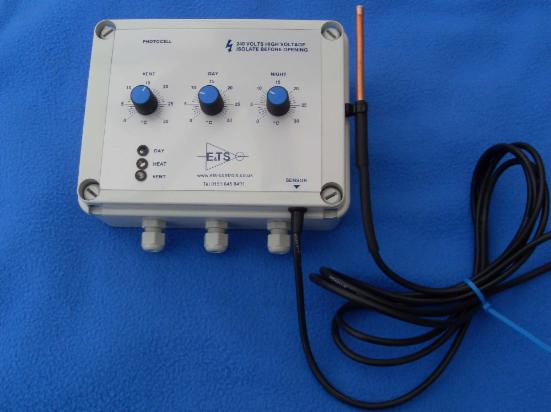

DAY & NIGHT TEMPERATURE + VENTILATION CONTROLLER

 ♦ Temperature range from 0 deg C to 30 deg C.
 ♦ Can be used for temperature and ventilation control.
 ♦ Differential set to switch at 1deg C.
 ♦ Red LED to indicate when heat is called for.
 ♦ Sensor integral or remote.
 ♦ Switched 240Vac live at 12 amps.
 ♦ Maximum load 2Kw resistive.

 ♦ Seperate Day and Night controls.
 ♦ Green LED indication for daytime operation.
 ♦ Common ventilation control.
 ♦ Yellow LED indication for ventilation control.

♦ Heat override on Day and Night.
 ♦ Photocell automatically sets for Day or Night operation.
 ♦ Max vent load switched at 240Vac 750 watts resistive.
 ♦ Splashproof PVC enclosure.
